CFM56 Engine Parts: Aft Inner Seal Ring Aircraft Engine Components

Precision Engineering for CFM56 Engine Parts: Aft Inner Seal Ring Aircraft Components

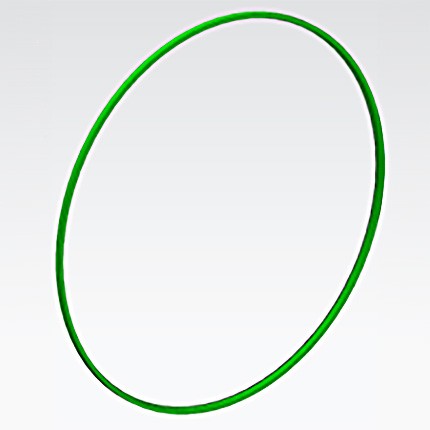

The Aft Inner Seal Ring, also referred to as the Aft Inner Retaining Ring, is a critical component in the CFM56 engine, designed to maintain the integrity of the turbine system by providing exceptional sealing and structural support. This precision-engineered part is crucial for controlling airflow and pressure within the low-pressure turbine (LPT) system, optimizing performance and ensuring reliability under extreme operating conditions.

Key Features of the Aft Inner Seal Ring

1. Advanced Material Composition

• Heat-Resistant Superalloys: The Aft Inner Seal Ring is crafted from nickel-based superalloys such as Inconel 718 or Rene 41, materials renowned for their ability to withstand high temperatures exceeding 980°C. These alloys retain their mechanical properties even under the most demanding conditions, ensuring long-term reliability.

• Thermal Barrier Coatings (TBCs): For enhanced heat resistance, the ring is often coated with yttria-stabilized zirconia (YSZ), a ceramic material that reduces thermal stress and prevents overheating during operation.

• Corrosion Resistance: Advanced coatings protect the ring from oxidation and chemical degradation caused by high-velocity gases and environmental exposure, ensuring a prolonged operational lifespan.

2. Precision Engineering

• Exact Tolerances: Manufactured to meet CFM International’s stringent specifications, the Aft Inner Seal Ring ensures a perfect fit within the turbine system, eliminating micro-movements that could lead to wear or inefficiencies.

• Streamlined Design: Its aerodynamic profile minimizes turbulence and optimizes airflow, reducing energy losses within the turbine.

3. Enhanced Durability

• The robust construction allows the ring to endure prolonged high-stress operations, minimizing mechanical strain on adjacent components.

• Its advanced design resists wear and tear caused by vibrations and thermal cycling, ensuring consistent performance.

4. Compliance with Aviation Standards

• All Aft Inner Seal Rings are manufactured in accordance with FAA and EASA certification requirements, making them suitable for critical aviation applications. These rigorous standards ensure that each component is reliable and consistent in quality.

Applications in the CFM56 Engine

The Aft Inner Seal Ring plays a vital role in the CFM56 engine, which powers aircraft like the Boeing 737 and Airbus A320 families. Positioned in the low-pressure turbine assembly, this component prevents air leakage, maintains pressure, and ensures optimal airflow, which directly contributes to the engine's overall efficiency and performance.

Why the Aft Inner Seal Ring Matters in Modern Aviation

Improved Engine Efficiency

By maintaining a secure seal and optimizing airflow, the Aft Inner Seal Ring reduces energy loss and enhances fuel efficiency, helping airlines lower operational costs.

Extended Engine Lifespan

The durable construction minimizes wear on critical turbine components, reducing the frequency of repairs and replacements, and thereby extending the overall lifespan of the engine.

Operational Safety

A secure and reliable sealing system reduces the risk of mechanical failures during flight, ensuring passenger and crew safety.

Unlock Engine Efficiency with Liyan International

Looking for durable and high-performance aircraft engine components?

The Aft Inner Seal Ring, also known as the Turbine Locking Plate or Blade Retention Plate, is a trusted choice for airlines and maintenance operators worldwide. Designed for the CFM56 engine, this component ensures consistent performance, enhanced efficiency, and prolonged engine life.

Why Choose Liyan International?

1. Premium Quality: Our components meet AS9100D and NADCAP certifications, ensuring reliability and safety.

2. Proven Expertise: Trusted by leading airlines and engine maintenance operators globally.

3. Comprehensive Support: Our team of experts provides tailored solutions to meet your fleet's specific requirements.

Benefits for Airlines

• Ease of Replacement: Our Aft Inner Seal Rings are designed for seamless integration with turbine systems, reducing downtime.

• Cost Savings: Durable construction minimizes maintenance expenses, saving you money in the long run.

• Readily Available: We ensure a consistent supply of high-quality parts to keep your fleet operational.

Maintenance and Replacement: Extending Engine Life

Regular maintenance is critical to the performance and safety of the CFM56 engine. Replacing worn-out components, such as the Aft Inner Seal Ring, prevents potential issues and ensures peak efficiency.

How We Support You

• Quick Turnaround: Reduce maintenance downtime with our readily available parts.

• Tailored Solutions: Get expert advice on selecting the right components for your fleet.

Contact Liyan International Today

Enhance your engine performance with our precision-engineered Aft Inner Seal Rings. Whether you need replacements for routine maintenance or upgrades for enhanced efficiency, Liyan International delivers components that meet the highest standards in modern aviation.

Contact us today for a free quote and take your fleet to the next level!
Optimize your engines with our trusted Aft Inner Seal Rings, engineered for reliability and performance.
